Adjustable Lateral Protection System

In stock

Components

Exploded view

Gallery

Advantages

Components

L=3,5m h=700

These are the quantities of components you need for this kit

Grouped product items
Ref	Description	Batch
1702020	Horizontal Anticrash ANODIZED Aluminium Profile	2
1702041	Horizontal Anticrash RAW Aluminium Profile	2



1702054	LIGHT Anticrash Support	2
1702066	LIGHT Anticrash Support with pin	1

1702010	Vertical Anticrash ANODIZED Aluminium Profile	2
1702002	Vertical Anticrash Profile RAW Aluminium	1
1702082	Pack 8 units Plastic Cap for Horizontal Anti Crash Profile	1
1702086	Pack 4 units Plastic Cap for Vertical Anti Crash Profile	1
2101096	Pack 16 Bolts Hex DIN 933	1
2102102	Pack 16 Stop Nuts DIN 985	1
2101134	Pack 4 Plates Aluminium, 3 holes	1

*VAT not included

L=3,5m h=550

These are the quantities of components you need for this kit

Grouped product items
Ref	Description	Batch
1702020	Horizontal Anticrash ANODIZED Aluminium Profile	2
1702041	Horizontal Anticrash RAW Aluminium Profile	2


1702052	LIGHT Anticrash Support	2



1702010	Vertical Anticrash ANODIZED Aluminium Profile	2
1702002	Vertical Anticrash Profile RAW Aluminium	1
1702082	Pack 8 units Plastic Cap for Horizontal Anti Crash Profile	1
1702086	Pack 4 units Plastic Cap for Vertical Anti Crash Profile	1
2101096	Pack 16 Bolts Hex DIN 933	1
2102102	Pack 16 Stop Nuts DIN 985	1
2101134	Pack 4 Plates Aluminium, 3 holes	1

*VAT not included

L=7m h=700

These are the quantities of components you need for this kit

Grouped product items
Ref	Description	Batch


1702043	Horizontal Anticrash RAW Aluminium Profile	2
1702022	Horizontal Anticrash ANODIZED Aluminium Profile	2

1702054	LIGHT Anticrash Support	2
1702066	LIGHT Anticrash Support with pin	1

1702010	Vertical Anticrash ANODIZED Aluminium Profile	2
1702002	Vertical Anticrash Profile RAW Aluminium	1
1702082	Pack 8 units Plastic Cap for Horizontal Anti Crash Profile	1
1702086	Pack 4 units Plastic Cap for Vertical Anti Crash Profile	1
2101096	Pack 16 Bolts Hex DIN 933	1
2102102	Pack 16 Stop Nuts DIN 985	1
2101134	Pack 4 Plates Aluminium, 3 holes	1

*VAT not included

L=7m h=550

These are the quantities of components you need for this kit

Grouped product items
Ref	Description	Batch


1702043	Horizontal Anticrash RAW Aluminium Profile	2
1702022	Horizontal Anticrash ANODIZED Aluminium Profile	2
1702052	LIGHT Anticrash Support	2



1702010	Vertical Anticrash ANODIZED Aluminium Profile	2
1702002	Vertical Anticrash Profile RAW Aluminium	1
1702082	Pack 8 units Plastic Cap for Horizontal Anti Crash Profile	1
1702086	Pack 4 units Plastic Cap for Vertical Anti Crash Profile	1
2101096	Pack 16 Bolts Hex DIN 933	1
2102102	Pack 16 Stop Nuts DIN 985	1
2101134	Pack 4 Plates Aluminium, 3 holes	1

*VAT not included

Exploded view

Gallery

Advantages

REGULATION

TECHNICAL FITTINGS INSTRUCTIONS RELATED TO LATERAL PROTECTION, according to R73 reglement. The vehicles belonging to N2, N3, 03 and 04 classes must be built and equipped, in order to offer the road users (pedestrians, cyclist...) an efficient protection against the risk of falling under a lateral part of the vehicle and slipping under the wheels.
MOTORIZED VEHICLES N2 AND N3 CLASSES

Accuracy to size for assembly
TRAILERS 03 AND 04 CLASSES

Accuracy to size for assembly
SEMITRAILER 03 AND 04 CLASSES

Accuracy to size for assembly

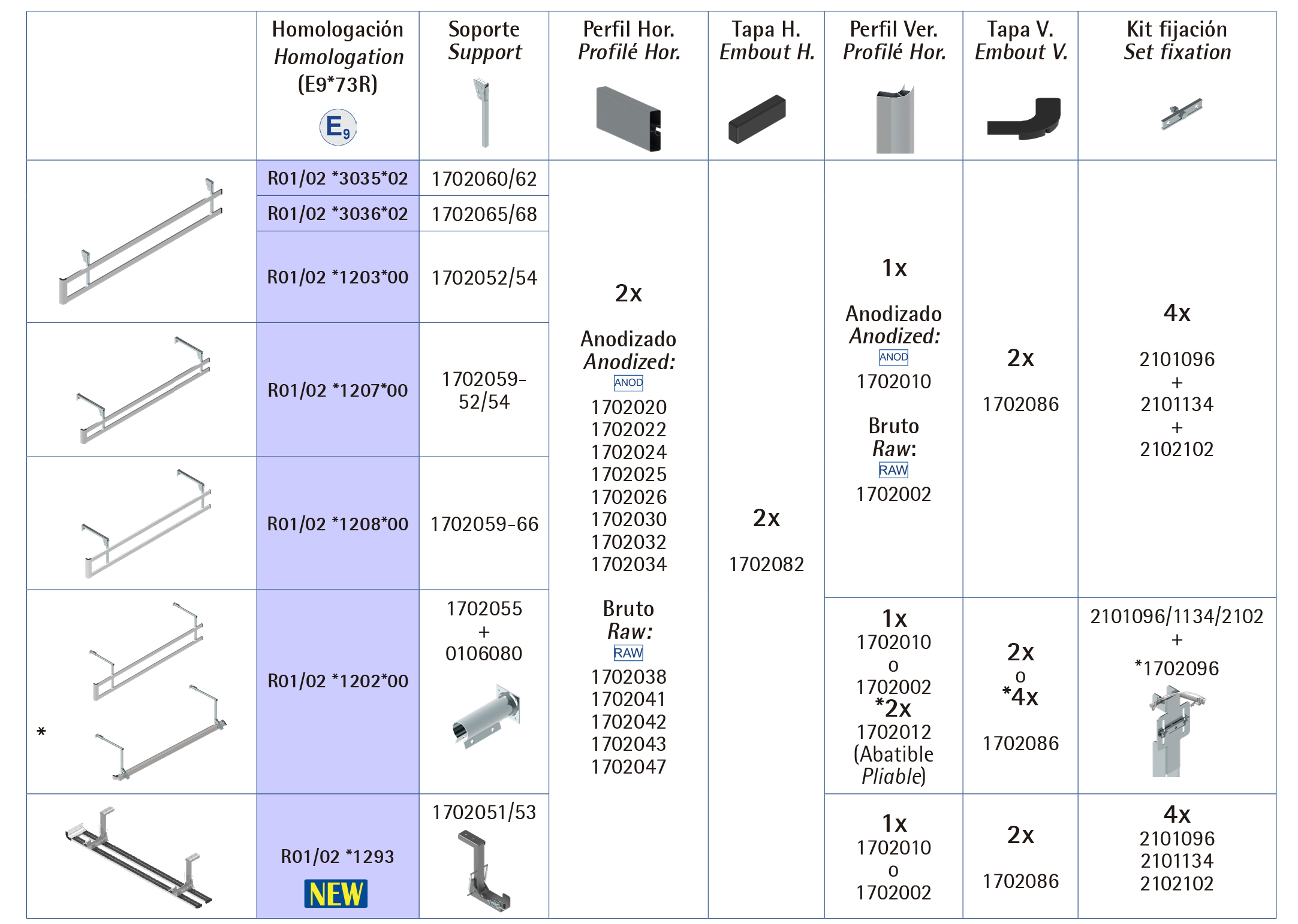

HOMOLOGATION

*Homologations are only valid with the complete kit of ADAICO components

**Quantities in the component table valid for 1 KIT (1 truck = 2 kits

- Choose between RAW or ANODIZED Aluminum profiles

- Homologated only for LIGHT Support

- Choose the appropriate profile to configure the assembly in other lengths (1.2/2.5/3/4/5/6m.)
